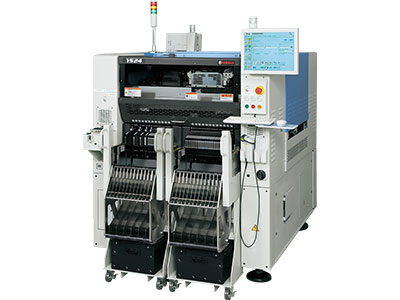

机型
|
YS24
|
|
对象基板
|
L50×W50mm～L700×W460mm
|
|
贴装能力
|
72,000CPH (0.05秒/CHIP：本公司最佳条件)
|
|
贴装精度
|
±0.05mm(μ+3σ)、±0.03mm(3σ)
|
|
对象元件
|
0402～□32mm MAX(高度6.5mm以下)
|
|
元件种类
|
120种(最大/换算成8mm卷带)
|
|
电源规格
|
三相AC 200/208/220/240/380/400/416 V ±10％
|
|
供气源
|
0.45MPa以上、清洁干燥状态
|
|
外形尺寸
|
L1,254×W1,687×H1,445mm(突起部分除外)
|
|
主体重量
|
约1,700kg
|
|
Model
|
YS24
|
|
Applicable PCB
|
L50xW50mm – L700xW460mm
|
|
Mounting Capability
|
72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)
|
|
Mounting Accuracy
|
+/-0.05mm (μ + 3σ), ·/-0.03mm (3σ)
|
|
Applicable Components
|
0402 to 32x32mm MAX (Height 6.5mm or less)
|
|
Component Types
|
120 types (Max./8mm wide tape reel conversion)
|
|
Power Supply
|
Three phase AC 200/208/220/240/380/400/416 V +/-10%
|
|
Air Supply Source
|
0.45MPa
|
|
External Dimensions
|
L1,254·x W1,687·x H1,445mm (Excluding protrusions)
|
|
Weight
|
Approx. 1,700kg
|
 |
|
